Automated Liquid Handling, Dilution, and Filtration Workstation DAM-PDF-50
Keywords:
Product Description
The fully automated liquid handling, dilution, and filtration workstation achieves a high level of automation by replacing manual processes in the post-processing module. The dilution function is also an automated task of the post-processing workstation. By diluting liquids of various concentrations according to preset ratios, the equipment can quickly prepare solutions of the required concentration, automatically handle and transport them, and finally deliver the processed liquids to the final inspection unit.
Product Features
- Automatic data feedback, integrable with various terminals.
- 7×24 hours uninterrupted operation, real-time recording of experimental process data and results.
- Supports automatic entry and exit of 18 samples, speed 200mm/s, positioning accuracy ±0.1mm.
- Supports independent filtration at 18 workstations.
- Supports two types of diluent injection, single sampling 50ml, accuracy ±0.5ml.

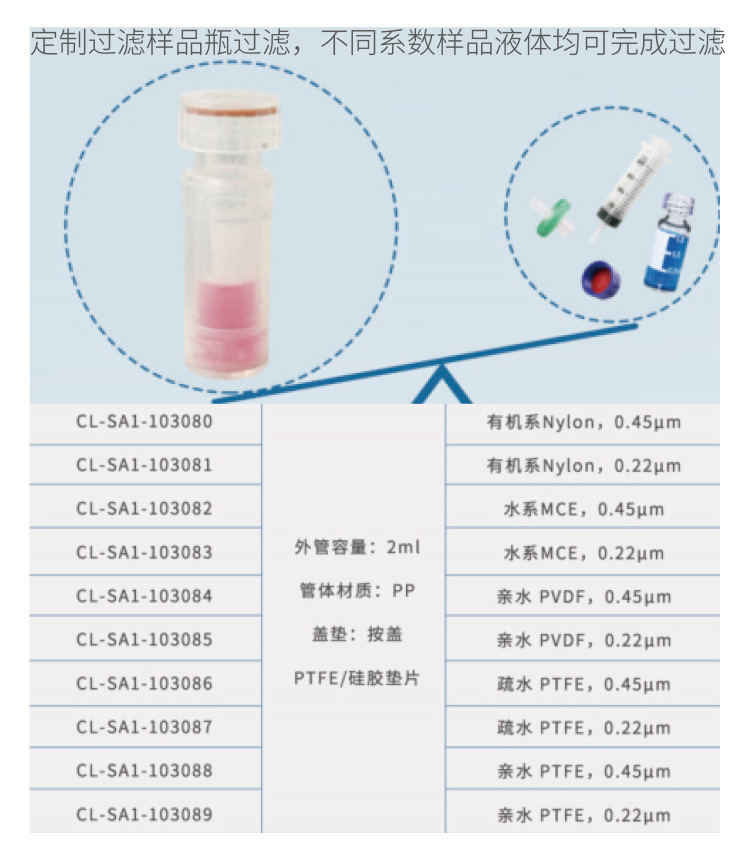

- Custom filtration sample bottles, filtration of samples with different coefficients.
- Equipped with a clamping mechanism.
- Equipped with a hollow rotary table, supporting automatic opening and closing of glass bottles, and supporting QR code scanning and identification.
Product Applications
- Applicable to various fields of pre-processing modules in chemistry, chemical engineering, biomedicine, petroleum building materials, inspection and quarantine, etc.
Product Parameters
|
Product Model |
DAM-PDF-50 |
|

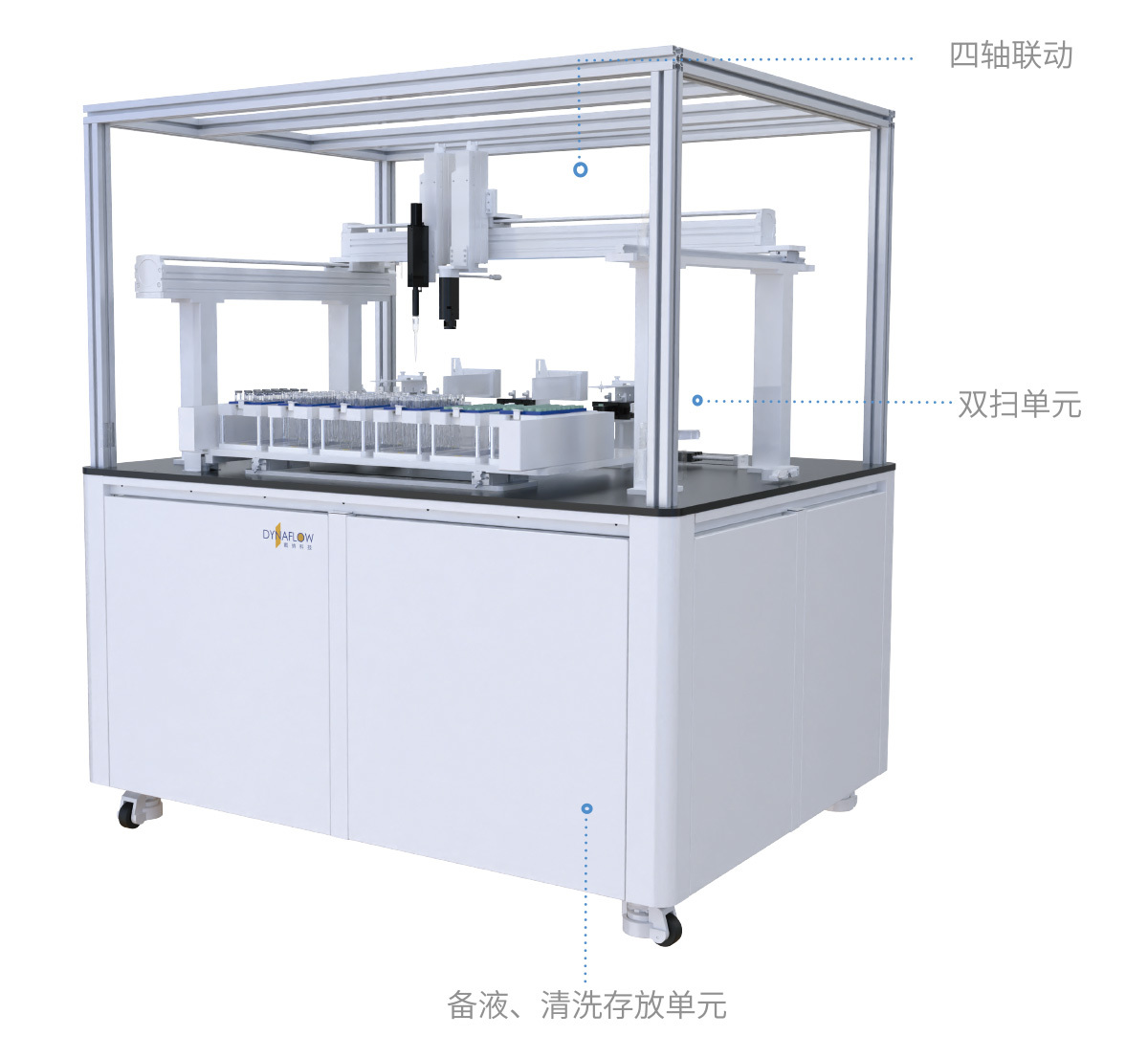

Four-Axis Movement Speed |
X-axis speed 600mm/s, Y-axis speed 500mm/s, Z-axis speed 150mm/s, minimum acceleration/deceleration time 2s, positioning accuracy ±0.03mm |
|
Injection Volume |
Supports two types of diluent injection, single sampling 50ml |
|
Injection Accuracy |
±0.5ml |
|
Communication Interface |
485, 323 |
|
Operating Voltage |
AC 220V |
|
External Dimensions |
1580*1228*1572mm |
|
Equipment Weight |
390kg |
