PH value automatic detection robot DNAPD-W480
Keywords:
Category:
Product Description

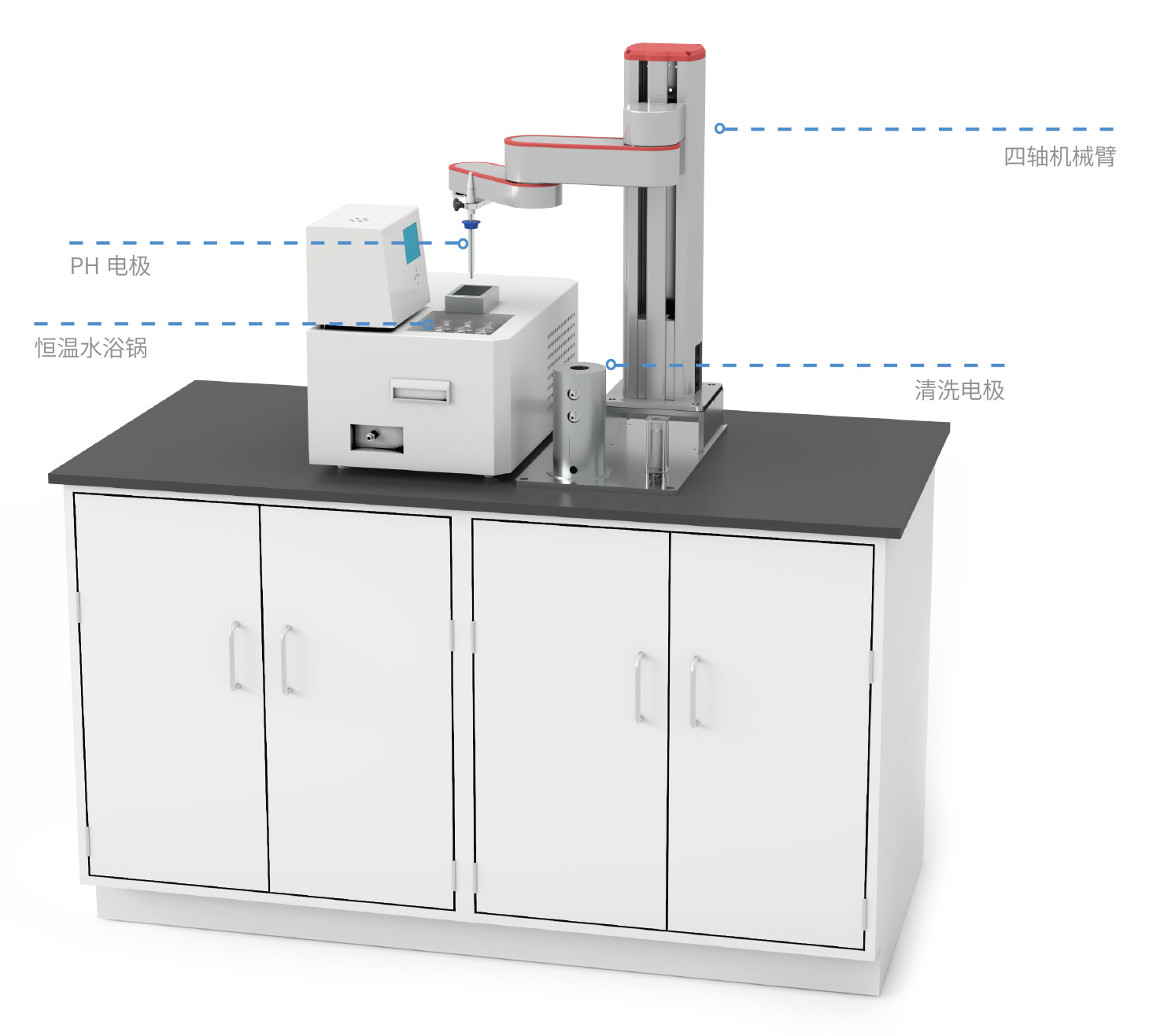

Automatic pH detection robot, including a four-axis robotic arm, constant temperature water bath, pH electrode, electrode cleaning unit, etc. It automatically completes the entire process from sample constant temperature treatment, pH detection to electrode cleaning and drying. The automatic pH detection robot can connect to the DynaWise management system to read and upload detection data.
Product Features
- Reduce Sample Contamination: Equipped with electrode cleaning and drying functions, keeping the pH electrode clean and sterile, greatly reducing cross-sample contamination, and improving safety.
- Supports Various External Auxiliary Devices: PC, scanner, printer, etc., with high flexibility, can be reasonably combined according to user needs.
- Flexible Combination of Detection Modules: According to actual needs, various detection modules such as surface activity detection and liquid density detection can be flexibly combined.
Product Applications
- Used in laboratories, testing rooms, or other scenarios with pH detection needs, replacing repetitive operations.
Product Parameters
|
Product Model |
DNAPD-W480 |
|
Detection Throughput |
Viscous samples: 20/hour; Samples with good fluidity: 60/hour |
|
Measurement Range |
0.00--14.00PH |
|
Resolution |
0.01 |
|
Accuracy |
±0.02 |
|
Calibration |
Up to 5 points, 8 preset and 20 user-defined buffer groups |
|
Data Storage |
20000 data points, 250 sets of analysis results |
|
Data Export |
U disk, EasyDirectrm PC software |
